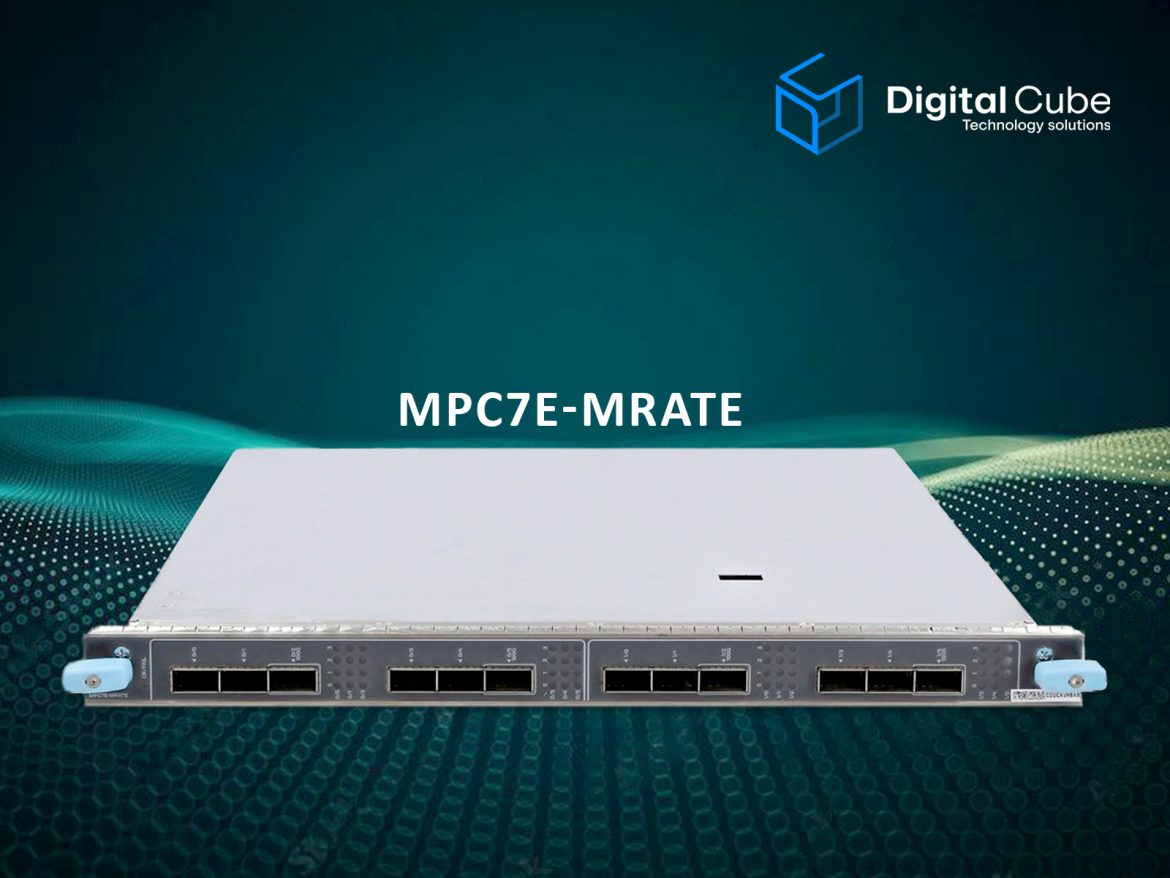

It is a juniper’s product and works as an expansion module. Therefore also known as the MPC7E-MRATE Expansion module. The part or manufacturer number of this device is DCTS6590. It is a primary type of Expansion Module. However, if we talk about the feature of the device is that it provides two switching i.e. 2.5 switching and 3-layer switching. Moreover, there are 3 chip sets available in the Expansion modules. Many people also know this chipset by the name of Trio Chipset. These trio chipsets are used to increase the scaling for subscribers and services. On the other hand, you can also increase the system’s bandwidth with the help of this Trio chipset while installing this module.
General idea about MPC7E-MRATE
As we have mentioned above that these MPC7E-MRATE works as an expansion module. Therefore, 100 Gigabit QSFP28/ 40 Gigabit QSFP+ networking can be supported in this module. All the routers like MX480, MX240, and MX960 have a line rate above 480 Gbps. Conversely, some routers like MX2000 with SFB have a line rate of about 400 GB/s. At the same time, MX200 with SFB2 routers have a line rate above 430 GBPs. However, the ports available in this module are about 12. These ports can configure 40 gigabit Ethernet. But four ports out of 12 support 100 gigabit Ethernet with diverse port numbers. Moreover, there are also 10 gigabit Ethernet ports available which can be used as a breakout cable in the system.
Main Features of MPC7E-MRATE
Many routers like MX960, MX240, MX2020, MX480, and MX2010 supports rate-selectable MPC7E-MRATE module. It is a fixed-configuration MPC and provides scalability in the service capability and bandwidth of the routers. However, some of the most common features of MPC7E-MRATE are:
• Line-rate of MX2000 routers is up to 400 Gbps
• In MX960, MX240, and MX480 routers there is up to 480 Gbps Line-Rate
• There are twelve ports available in these modules and each contains 40 gigabit Ethernet
• Four Pots among these 12 ports contain 10-gigabit Ethernet. And the number of these 4 ports is 0/2, 0/5, 1/5, and 1/2
Structure of MPC7E-MRATE
Net Screen is the manufacturer of these modules of MPC7E-MRATE. Therefore they are very compatible with every type of PC. However, if we talk about the dimensions and structure, their weight of them is about 17.90 LBS which is very hard to pick for a skinny guy. However, they also provide a 1-year warranty on these modules so you don’t need to worry about anything. You will get these modules in good condition and state of renovation.
What is N9K-C93180YC-FX?
It is a Cisco product that is very famous all around the world among many people. In simple words, it is an electronic device that works as a switch. It contains triple layers, thus also known as Layer 3 switches. However, some people also know these switches and are available in the market by the name of Cisco Nexus 93180YC-FX Layer 3 Switch. Moreover, they are easily available in the market with many good warranty options. So you can get N9K-C93180YC-FX for yourself easily. If we talk about the part or manufacture number, it is DCTS6585. However, there are many frauds also available in the market. Therefore you have to check the proper part number of it before buying from a shop.
Overview of N9K-C93180YC-FX
With its 3-layer switch, it is known as the new generation platform among many people. However, N9K-C93180YC-FX provides cloud-scale technology. It ensures the development of the platform. However, we can increase the endpoint series in these switches. Moreover, you will be facilitated with cloud security services along with a wire rate. It enables 3.6 terabits per second in a 1-rack unit. Entrepreneurs can fulfill their needs by using this platform as they provide a high-performance modern system. On the other hand, the data center also supports this platform to perform a task. If we talk about the bandwidths, over 2.8 billion packets are bandwidth terabits per second.
Characteristics of N9K-C93180YC-FX
This Cisco Nexus also works as a platform as we have mentioned above, providing good security to their customers. This platform protects them from any bug or distortion. However, if we talk about the ports in N9K-C93180YC-FX, 48 downlink ports are available. These ports work as 25-, 1-, and 10- Gbps. In this platform, data can be transferred and received smoothly without any buffer as it provides virtualized and best performance to their customers. Moreover, these three-layer switches provide workload mobility and flexible LAN. It also works as a circuit system in which it exports applications at the speed of 100 milliseconds.
Structure and shape of N9K-C93180YC-FX
If we talk about the shape and structure, the width of N9K-C93180YC-FX is about 17.3 inches and the depth is approximately 22.5 inches. Moreover, its height of it is around 1.7 inches and its weight is 17.2 LBS which is very heavy to carry for a skinny guy. Besides, you don’t need to worry about anything as Cisco is giving a one-year warranty on these switches.
