Coaxial Cable is a sort of copper cable specifically constructed with a steel shield and different additives engineered to reduce signal interference. It is commonly used by cable TV companies to connect their satellite TV for PC antenna centres to consumer homes and businesses. It is also occasionally used by cellphone companies to connect important offices to cellphone poles near customers. Some houses and workplaces use coaxial cable, too; however, its sizeable use as an Ethernet connectivity medium in organisations and facilities has been supplanted through the deployment of twisted pair cabling.
Coaxial cable got its name because it consists of one bodily channel that contains the signal and is surrounded – after a layer of insulation – by some other concentric bodily channels, each walking along the same axis. The outer channel serves as a ground Many of those cables or pairs of coaxial tubes may be positioned in an unmarried outer sheathing and, with repeaters, can cover a notable distance.
Oliver Heaviside, an English engineer and mathematician, invented coaxial cable in 1880 and patented the discovery and layout that same year. AT&T installed its first cross-continental coaxial transmission device in 1940. Twisted pair copper cord and optical fibre are alternatives to coaxial cable, depending on the provider and other factors.
How Coaxial Cables Work

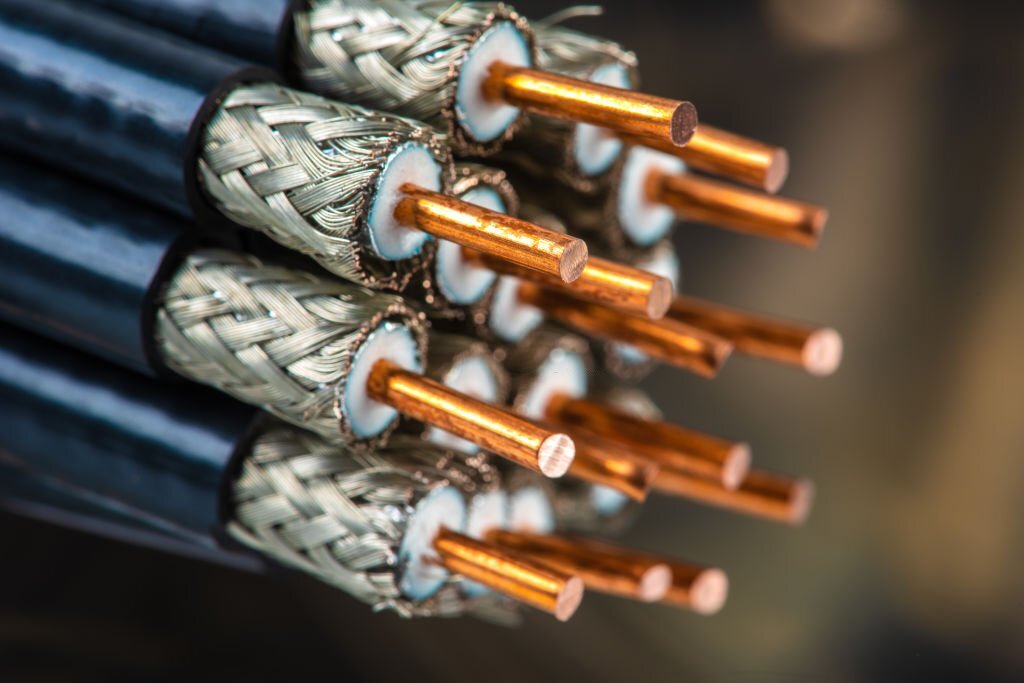

Coaxial cables have concentric layers of electrical conductors and insulating material. This production method guarantees indicators are enclosed inside the cable and prevents electric noise from interfering with the sign.
The middle conductor layer is a skinny accomplishing wire, either strong or braided copper. A dielectric layer, made from an insulating cloth with very well-described electric traits, surrounds the wire. A protection layer then surrounds the dielectric layer with metallic foil or braided copper mesh. The complete meeting is wrapped in an insulating jacket. The outer metallic shield layer of coaxial cable is typically grounded within the connectors at each end to protect the alerts and provide a dissipation area for stray interference alerts.
Understanding cable dimensions and materials is essential for coaxial cable layout. They work together to ensure that the function impedance of the cable takes on a specific value. High-frequency alerts are in part pondered at impedance mismatches that cause errors.
Sign frequency has an effect on characteristic impedance. Above 1 GHz, the cable maker should use a dielectric that doesn’t attenuate the signal excessively or alternate the function impedance in a manner that creates sign reflections.
Electrical traits of coax are well-established and important for accurate performance. Two widespread function impedances are 50 ohms, utilised in low-energy environments, and 75 ohms, not unusual for connections to antennas and home installations.
Types Of Coaxial Cables
There are several styles of coaxial cables; a few kinds include:
Hard-line coaxial cable is made of spherical copper tubing and a shield of metals such as aluminium or copper.These cables are normally used to attach a transmitter to an antenna.
Triaxial cable, which has a third layer of protection, is grounded to shield alerts transmitted down the cable.
Rigid-line coaxial cables are made of dual copper tubes with the property of being unbending pipes. These traces are designed for indoor use among high-energy radio frequency (RF) transmitters.
Radiating cable: similar to hard-line cable in many ways, but with tuned slots within the protective sheath matched to the RF wavelength at which the cable will function. It is normally utilised in elevators, the Navy System, and underground tunnels.
Types Of Connectors
Many exceptional styles of coaxial cable connectors can be distinguished by the use of different styles—male and female connectors. Connector types include:
BNC:
This connector, which stands for Bayonet Neil-Concelman, is used with TV, video sign, and radio at a frequency of 4 GHz.
TNC:
This connector, Neil-Concelman, is a threaded version of the BNC connector that is used in cellphones.TNC connectors can operate at up to 12 GHz.
SMA:
Standing for SubMiniature Model A, this connector is used with cell phones, Wi-Fi antenna structures, microwave structures, and radios. SMA connectors function up to 18 GHz.
SMB,
standing for Subminiature Model B, is a connector that can be used with telecommunications hardware.
QMA:
QMA connectors are a quick-locking variation of SMA connectors used with commercial and communications hardware.
RCA
stands for Radio Corporation of America; those are connectors utilised in audio and video. These are the yellow, white, and crimson cables that were used with older televisions.RCA connectors are also known as A/V jacks.
F Connectors
also known as F-types, are utilised in virtual and cable televisions. These typically employ RG-6 or RG-59 cables.
Coaxial Cable Applications
In the house and small offices, quick coaxial cables are used for cable TV, domestic video gadgets, novice radio gadgets, and measuring devices. Historically, coaxial cables had been extensively utilised as an early form of Ethernet, assisting speeds of up to 10 Mbps; however, coax has been supplanted by means of twisted-pair cabling. However, they are still widely used for cable broadband internet. Coaxial cables are also used in automobiles, airplanes, the military, and medical devices, as well as to connect satellite TV dishes, radios, and TV antennae to their respective receivers.
